Eltron P310 Card Printer

Dual-Sided, Edge-to-Edge Color Card Printing Is Easier
and Faster Than Ever

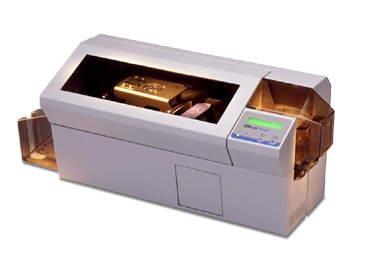

The Eltron P420 plastic card printer is highly versatile, and designed for high volume
printing of dual-sided plastic cards in color. It is ideal for applications requiring production
of full-color 2-sided plastic cards. Use the P420 card printer to print:

The P420's rugged, all metal enclosure houses a low-maintenance print
mechanism that includes self-cleaning card handling, high capacity
ribbon system, two-line LCD control panel, and convenient card reject
hopper. The reject hopper separates cards that fail encoding prior to
printing, saving valuable printer ribbon. The enclosure includes a viewing
window to monitor the printing process without opening the unit.
Transparent input and output hoppers provide visual card capacity status.
The new P420's advanced features include a 32-bit processor, 4 Mbytes of
image memory, and 512Kbytes of Flash memory

The Eltron P420 prints sharp, readable bar codes, ID photos, graphics and
text, edge-to-edge, in seconds. That means you can issue personalized
cards on the spot. Its space-saving design is the perfect choice for desktop
and countertop applications.

Installation of the P420 is plug-and-play out of the box using the Microsoft™ Windows™
drivers making it simple to set up and use. Free basic WindCard™ card design utilities
are provided with each unit. In addition, the P420 offers several options including;
RS232C serial and USB ports, a "non-scratching" magnetic stripe encoder,
and smart card contact station for applications that require encoded cards. The unit's handy
reject card hopper prevents improperly encoded cards from being printed.
and used. The P420 is easy to load and use; the operator control panel displays
printer status and functions that guide the operator, using easy to
understand status and simple instructions. Printer ribbon synchronization
is automatic, eliminating the need for operator intervention. A
self-cleaning cartridge thoroughly removes dust before printing to help
eliminate card rejects due to dust contamination.

Eltron card printers provide precise card printing, economical, reliable,
easy-to-use operation, plus the broadest line of options, accessories and
supplies in the industry.

General Specifications

High speed printing, over 102 cards/hour edge to edge in full color
(YMCKO/K) throughput
4MB image memory standard
Standard card flip over feature for dual sided printing
Reject Card Box feature
Small footprint
Easy to use WindCard™ Classic utility tool standard
Windows® Drivers for 95 and NT 4.0
One year printer warranty
One year printhead warranty (unlimited passes)
Powerful CPPL (Card Printer Program Language)

Color Printing

Color dye sublimation or monochrome thermal transfer printing
102 cards/hour throughput, 35 seconds per card, 2 sides
(YMCKO/K)
300 dpi (11.8 dots/mm) print resolution
Edge to edge printing standard

Bar Codes

Code 39 · Code 128 B & C with & without check digit
2 of 5 & 2 of 5 Industrial
UPC-A
EAN 8 & EAN 13
PDF-417 2D bar code and other symbologies available via
Windows driver and WindCard Classic utility tool

Fonts

Resident: Arial Normal 22, Arial Bold 28
True Type fonts available via Windows driver and WindCard
Classic utility tool

Card Specifications*

Types: PVC, Composite
Card width/length: ISO CR-80 - ISO 7810, 2.125" (54mm) X 3.385"
(86mm)
Magnetic Stripe - ISO 7811
Smart Card - ISO 7816-2 · Card thickness: 10 mil (.25mm) to 60
mil (1.524mm)
Card Feeder capacity: up to 300 cards (10 mil), up to 100 cards
(30 mil)
Card Output Hopper capacity: up to 300 cards (10 mil), up to 100
cards (30 mil)

Ribbon Specifications

Monochrome: 1500 cards/roll
Monochrome colors: black, red, blue, green, yellow, silver, gold,
white, Scratch-Off Grey · K Resin + O: 800 cards/roll
K Dye + O: 800 cards/roll
YMCKO: 350 cards/roll
YMCKO/K: 250 cards/roll

Overlay Varnish Specifications

Thermal transfer
Clear and holographic options available:
- Clear
- Genuine/Secure hologram
- Pcard hologram
- Custom hologram

Communications Interface

Parallel ECP Centronics standard (cable optional)
RS232C Serial port
USB port optional (available Q3 2000)

Mechanical

Width: 20.90" (523mm)**
Depth: 10.17" (2543mm)
Height: 10.76" (269mm)
Weight: 27.5 lbs (12,5 kg)

Electrical

110-230V, 50/60Hz
FCC Class A, CE, UL and CUL approved

Environmental

Operating temperature: 608F to 868F (158C to 308C)
Operating humidity: 20% to 65% non-condensing
Storage temperature: -238F to 1588F (-58C to 708C)
Humidity: 10% to 90% non-condensing
Ventilation: Free air

Options

RS232C Serial port (EPCL recommended for fast throughput)
USB port (available Q3 2000)
Smart Card contact station (30 mil cards only)
Magnetic encoder (30 mil cards only)
Extended warranty program
Hot Swap warranty program
Cleaning supplies
Service manual

* For optimum performance use Zebra/Eltron media.
**Dimensions without card cartridge and card output hopper

Blank White PVC Cards CR-80, 2.125" x 3.385", 30mil thick $70.00 per Box of 500 Cards $17.00 per Box of 100 Cards
Blank White Magnetic Stripe PVC Cards CR-80, 2.125" x 3.385", 30mil thick w/ Standard HiCo Magnetic Stripe on Back, NOT encoded $105.00 per Box of 500 Cards
Blank White PVC Cards (Adhesive Backed, Pressure Sensitive) CR-80, 2.125" x 3.385", 10mil thick $115.00 per Box of 500 Cards
Eltron P310/P420 Printer Ribbons 5 panel color ribbon - 350 Cards (3 Dye Sub, 1 Blk resin, 1 Clear Overlay - YMCKO) $130.00 each 6 panel color ribbon - 250 Dual-sided Cards (YMCKOK, Color front, black resin on back, for P420 only) $93.00 each
Eltron P310/P420 Printer Maintenance Supplies Eltron Adhesive Cleaning Core Kit, $32.00 each Eltron Premier Cleaning Card/Swab Kit, $60.00 each
Extended Second Year Printer Warranty Available A optional second year Hot-Swap warranty program is available from Eltron When acquired at time of initial purchase of System, the fee for the Eltron P310C is $495.00, and the fee for the Eltron P420 is $620.00.
Colored Flat Woven Nylon Break-Away Lanyard 35" (889mm) w/plastic slide hook $100.00 per package of 100 (Black)
Hanging Badge Strap Spring Clips High quality & perfect for your hanging ID Badge requirements. $165.00 per box 500 $37.00 per pack 100
Hand-Held Slot Punch Creates the needed ID Badge strap clip slot hole in a jiffy. Punches out a slot hole 1/8" x 1/2" $95.00
Stapler-Style Slot Punch with adjustable guide, for cards up to 30mil thick Creates the needed ID Badge strap clip slot hole in a jiffy. Punches out a slot hole 1/8" x 1/2" This style slot punch is perfect for use with PVC Cards $95.00
